SUYIN Spring-contact battery connectors: Housing variations reduce cost of development, storage, tools and placement

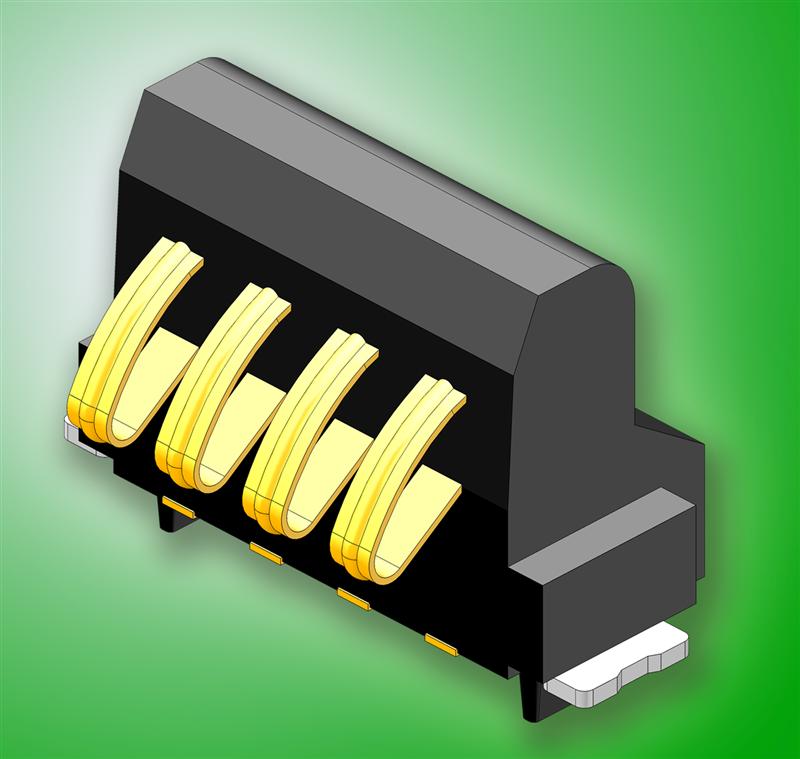

In increasing numbers of electronics development projects, cost-optimization efforts are focusing more closely on ensuring that different modules share as many identical or similar components as possible. This creates significant potential for savings - beginning with purchasing and storage and continuing through development and tool costs all the way to placement processes in volume production. Plug-and-socket connectors, for example, frequently require only slight modifications in their mechanical dimensions - with no change to the electrical characteristics - to make them suitable for use in different applications. At volumes above certain minimum order levels, SUYIN is able to make such application-specific modifications quickly and inexpensively in close collaboration with its customers. One example of optimization of this type is the Series 200097MB four-position, right-angle SMT spring-contact battery connector, which was realized for a customer development project in two versions featuring different heights of 6.55 mm and 9.2 mm. In this way, the housing was adapted to perfectly match the specific application. In order to ensure excellent mating reliability, even when the devices are subjected to vibration loads, the spring contacts, with a pitch of 2.0 mm, feature a special design. The spring travel is specified at 1.6 mm (nom.), and the contact force at greater than or equal to 165 g/contact. The dielectric strength is specified at 12 V / 2 A per contact and the number of mating cycles at a minimum of 6,500. Both versions of the spring contact battery connector are fitted with three SMT solder tabs (two side tabs and one tab at the back). Together with additional position-locking insertion tabs on the bottom of the connector, the solder tabs ensure a reliable and rugged mechanical connection to the PCB. Depending on the new development project, SUYIN supplies connectors beginning at annual order volumes of 100,000 pieces or higher, and, of course, helps to ramp up the project with pre-series batches. Key specifications at a glance: Type: Battery connectors with spring contacts, right angle, SMT No. of positions: 4 Mating cycles: At least 6,500 Serial Number: 200097MB About SUYIN SUYIN Corporation, founded in 1981 with headquarters in Taipeh/Taiwan, employs over 10,000 people in six production plants and in eight distribution offices world-wide. In 2009 the company generated a turnover of 200 million US dollars. SUYIN's product portfolio ranges from electromechanical connectors of all types in standard and custom versions for almost all applications in any given industry to specific optoelectronic products. With the aid of rapid prototyping, high-precision machine tools and automated robotic assembly lines, SUYIN is able to meet the sophisticated requirements of its customers in terms of design, flexibility, functionality, quality, service and cost efficiency at all times and all around the world. Additional information is available at www.suyin-europe.com
