MALVERN, Pa. — Vishay Intertechnology, Inc. introduced a new series of wirewound noise suppressor resistors that delivers improved voltage performance and reliability for automotive ignition systems in reciprocating engines.

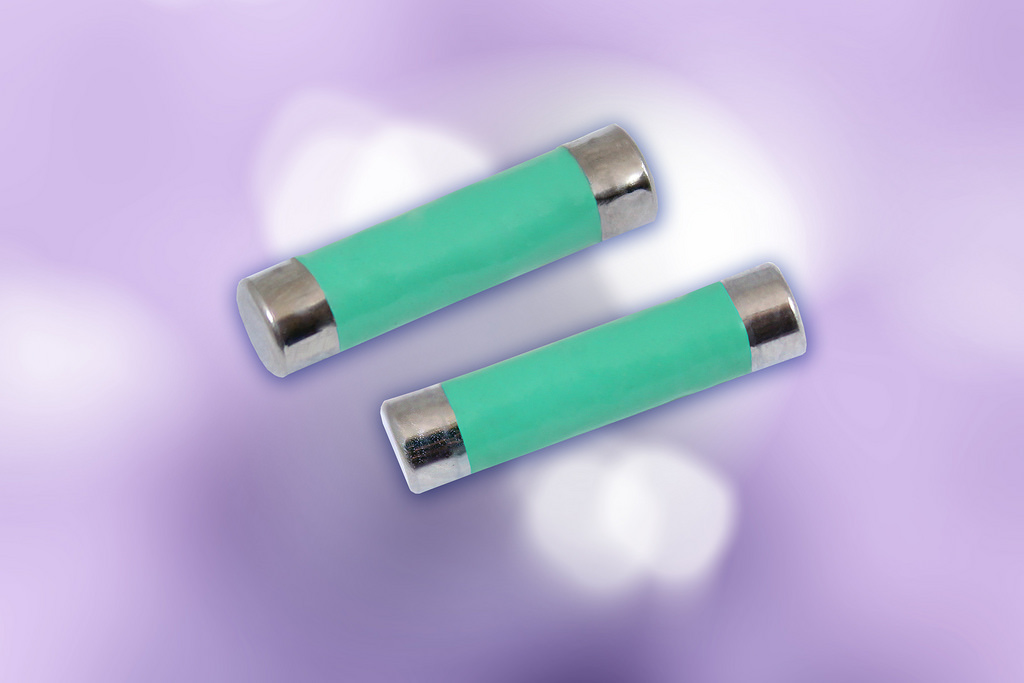

Vishay Dale NSR-HP series devices feature a coating that increases reliability by protecting the resistive element against moisture and mechanical shock while enabling high voltage performance to 45 kV and high operating temperatures to +200 °C. The resistors can withstand high voltage pulses at high frequencies and feature a dielectric withstand voltage of 1000 VAC.
Ideal for reducing RFI during electrical discharges in gasoline engines, the NSR-HP series can be used in spark plug leads, as well as in spark plug caps. The devices are available with wide ohmic and inductance value ranges from 1 kΩ to 15 kΩ and 9 µH to 78 µH, respectively, and feature a temperature coefficient of ± 250 ppm/°C.
The resistors are RoHS-compliant, halogen-free, and Vishay Green.
Samples of the NSR-HP series are available now. Production quantities will be available in March, with lead times of 16 weeks.
Vishay can be found on the Internet at www.vishay.com.
